Model
|

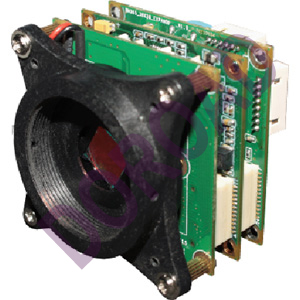

DR-IPM38B2
|
DR-IPM38A2
|
||
|
System Structure
|
Embedded LINUX RTOS ,dual core 32 bits DSP (TI Davinci DM368)
|
|||
|
Pure hardware compression, watchdog, 32M Flash, 128M DDR2.
|
||||
|
Image Sensor
|
1/2.5’’ 5.0 Megapixel CMOS Image sensor.
|
|||
|
Lens Mount
|
CS ( M12/M14 optional )
|
|||
|
Minimum Illumination
|
0.6Lux@F1.2 ( color), 0.08 Lux@F1.2 (B/W)
|
|||
|
Auto Iris
|
Support, DC drive auto iris lens, 1 auto Iris interface.
|
N/A
|
||
|
Photoresistance Linkage
|
Support linkage between photoresistance input sign, image, IR-Cut and IR lamp. 1 photoresistance interface.
|
|||
|
Day & Night
|
IR cut filter with auto switch, IR sensor. 1 IR lamp control interface algorithm control IR lamp open and close
|
|||
|
Video compression
|
H.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)
|
|||
|
Frame Rate
|
5.0 Megapixel@8FPS, 3.0 Megapixel@14FPS, 2.0 Megapixel@17FPS, 1.3 Megapixel@25FPS
|
|||
|
Image Output
|
Main Stream: 2592×1920,2048×1536,1920×1080,1600×1200,1280×1024,1280×960, 1024×768
|
|||
|
Sub Stream: 960×540,640×360,480×270,352×288,320×240,352×192, 320×192,288×192
|
||||
|
Remarks : Without sub stream (5.0 Megapixel)
|
||||
|
Analog Output
|
1 analog video output ,CVBS supported, PAL/NTSC (configurable)
|
|||
|
Audio Interface
|
1 CH audio input (Level: 2Vp-p, Impedance: 1kΩ) , sound pickup supported
|
N/A
|
||
|
1 CH audio output (Impedance:16Ω,power output : 30mw), headphone connection or amplifier supported
|
N/A
|
|||
|
Audio Process
|
Standard AAC encoding and decoding, two-way voice talkback, audio and video synchronization.
|
N/A
|
||
|
Storage Function
|
1 USB interface ( Max: 64G) , front storage supported,3G or WIFI extend supported
|
|
||
|
1 TF/SD storage extend interface (Remarks: need SD storage card plug)
|
N/A
|
|||
|
Alarm Interface
|
1 CH switch input , alarm input ,recording and background linkage supported
|
N/A
|
||
|
1CH switch output, sound and light alarm supported.
|
|
|||
|
Alarm Function
|
Motion detection and IO alarm linkage ip camera storage supported
|
|
||
|
|
Center warning and picture pop-up linkage supported ( after motion detection and IO alarm)
|
|
||
|
PTZ Function
|
1 RS422/ RS485 interface,PELCO and other PTZ protocols are available
|
N/A
|
||
|
Network Interface
|
1RJ45 Ethernet interface, 10/100M adaptation
|
|||
|
Protocols : RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
|
||||
|
Network Function
|
WEB configure and OSD supported, real time recording, transmission and playback, download.
|
|||
|
Free UC2 client software supported, VM6000 platform supported, SDK for customer software development;
|
||||
|
3G/WIFI/POE/ optional
|
||||
|
Others
|
Product dimension
|
38mm×38mm×33mm (three plates).
|
38mm×38mm
(two plates)
|
|
|
Net :Weight
|
0.2 KG
|
|||
|
Voltage
|
DC12V
|
|||
|
Consumption
|
3W
|
|||
