Vehicle IR Day/Night Metal Reverse View Camera - DOROAD INDUSTRIAL COMPANY LIMITED-CCTV Camera, DVR, IP Camera manufacturer
Products

Vehicle IR Day/Night Metal Reverse View Camera




Model: DR-MB260036
Categories: Vehicle IR Waterproof Metal Reverse View Camera
Description:

 Product Features

• IR Day/Night "Metal Box" Camera
• 1/3”Sony Color CCD
• Vandal-proof Design
• Resolution:480tvl,540tvl,600tvl
• Lens Optional: 6.0/3.6/2.8/2.3mm
• 12pcs leds, vision range10~15m
• DC12V
• With Audio(Optional)
• Dimension:L83xW43.4xH57(mm)


Detailed Product Description

Model

DR-MB260036

DR-MB270136

Pick up Device

1/3"Color SONY CCD

TV System

PAL/NTSC

Horizontal Resolution

600TVL

700TVL

Sensitivity

0 Lux at F1.2 (Infrared LED On)

Scanning System

625TVL

2:1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

More than 48 dB

More than 50 dB, (AGC Off)

Auto Gain Control (AGC)

Auto

White Balance

Auto

Electronic Shutter

Auto

Back Light Compensation

Auto

Infrared LED

12pcs

Infrared LED Range

10m

Video Output

1 Vp-p, 75Ωcomposite , BNC x1

Audio Output

for Options

Mirror

for Options

Gamma Ratio

0.45

Lens

f3.6mm Standard Lens

Exterior Focus Adjustment

N/A

Lens Mount

M12XP0.5mm Thread

Pan Adjusting

N/A

Tilt Adjusting

0-60°

Power Supply

12V DC ±10%

Power Consumption

210mA

190mA

210mA

Dimensions (L X W X H)

48.5 L x 87W x 61.2H mm

Net Weight

242g

Weatherproof/Water Proof

N/A

Operating Temperature

-10°C to +50°C

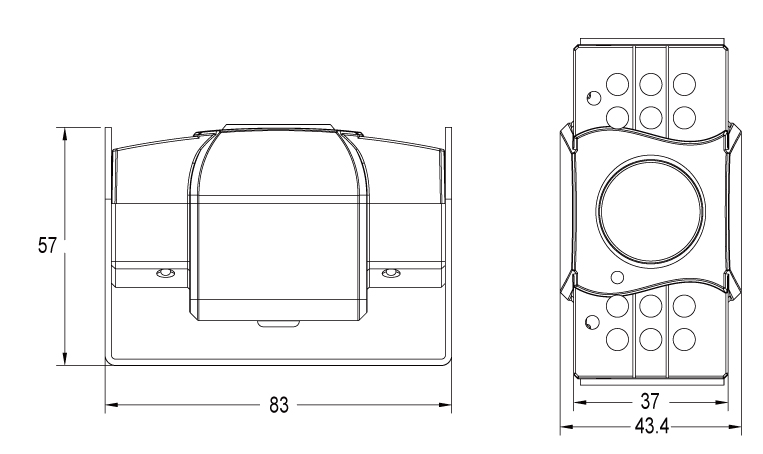

 Dimension:
