Bus Mobile IR Mini Metal Dome Camera




Model: DR-MD670122
Categories: Bus Mobile IR Mini Metal Dome Camera
Description:

 Product Features:

• Mini Metal Dome Camera
• IP67 Water-proof & Vandal-proof
• 1/3”Sony Color CCD
• Resolution: 600tvl
• Lens Optional: 2.2mm

Detailed Product Description:

Model

DR-MD670122

Pick up Device

1/3” Color SONY CCD

TV System

PAL/NTSC

Horizontal Resolution

700TVL

Sensitivity

1.3 Lux at F1.2

Scanning System

625TVL

2:1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

More than 50 dB, (AGC Off)

Auto Gain Control (AGC)

Auto

White Balance

Auto

Electronic Shutter

Auto

Back Light Compensation

Auto

Infrared LED

N/A

Infrared LED Range

N/A

Video Output

1 Vp-p, 75Ωcomposite , BNC x1

Audio Output

for options

Mirror

for options

Gamma Ratio

0.45

Lens

f2.2mm wide-angle lens

Exterior Focus Adjustment

N/A

Lens Mount

M12XP0.5mm Thread

Pan Adjusting

 +/-180 degree

Tilt Adjusting

0-50 degree

Power Supply

12V DC ±10%

Power Consumption

75mA

Dimensions (L X W X H)

D64.7xH36.5(mm)

Net Weight

90g

Weatherproof/Water Proof

IP67

Operating Temperature

-10°C to +50°C

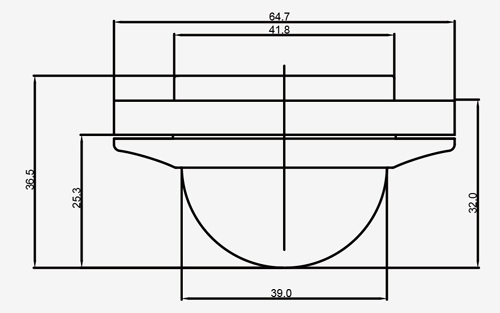

Dimension:
